Residential RO
Model: HY-3032

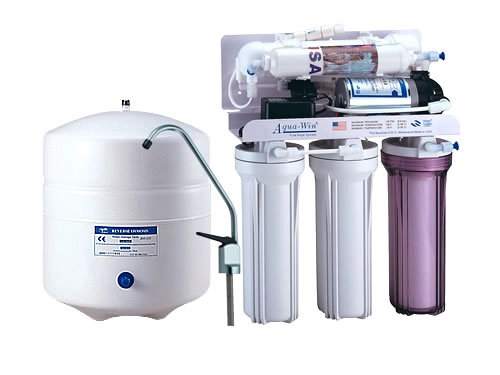

5 Stage Standard Reverse Osmosis Water System
5 stage standard RO system deremoves impurities in water up to 98%
Specification
Required (Select 1)
Technical Specifications
| Model No. | HY-3032 (A-101-4) |
|---|---|
| System Type | 5-Stage Standard RO System (4-Way Valve) |
| 1st Stage | 10" PP Sediment Filter (5 Micron) |
| 2nd Stage | 10" UDF Granular Activated Carbon Filter |
| 3rd Stage | 10" CTO Carbon Block Filter |
| 4th Stage | King-Pro 50 GPD RO Membrane |
| 5th Stage | Post In-Line Carbon Filter |
| Storage Tank | 3.2 Gallon NSF Standard Pressure Tank |
| Operating Pressure | 50 - 80 psi (3.5 - 5.5 bar) |
| Power / Voltage | Transformer available in 110V / 220V |
| RO System Dimensions | Around 43 (L) x 21 (W) x 52 (H) cm |
| Tank Dimensions | Around 28 (L) x 28 (W) x 38 (H) cm |
| Weight | Around 10 kg (RO System) / 4 kg (Tank) |
| Optional Upgrades | 80G / 100G Membrane, Mineral Filter, Alkaline Filter, UV Sterilizer |
Engineering Description & Capabilities
AQUA-WIN HY-3032 is a classic 5-stage standard reverse osmosis water purification system engineered for residential under-sink installation. Featuring a reliable 4-way mechanical shut-off valve, automated water level detection, and high-purity multi-stage filtration, it removes up to 99% of contaminants including heavy metals, chlorine, fluoride, bacteria, and dissolved solids.
Filtration Stages:
• 1st Stage: 10" PP 5-Micron Sediment Filter - Traps dirt, sand, rust, and suspended particles.
• 2nd Stage: 10" UDF Granular Activated Carbon Filter - Absorbs chlorine, odors, and chemical residues.
• 3rd Stage: 10" CTO Extruded Carbon Block Filter - Further clarifies water and removes volatile organic compounds.
• 4th Stage: King-Pro 50 GPD RO Membrane - Filters down to 0.0001 microns, removing heavy metals and dissolved solids.
• 5th Stage: Post In-Line Carbon Filter - Enhances taste and polishes water before dispensing.
Storage & Components:
• Storage Tank: 3.2 Gallon NSF certified standard pressurized water storage tank.
• Automatic Shut-Off: 4-Way valve system detects water level and automatically shuts down during insufficient feed water or full tank conditions.
• Optional Upgrades: 80G / 100G RO membrane, Mineralizing cartridge, Alkaline filter, and UVC sterilizer.
Filtration Stages:
• 1st Stage: 10" PP 5-Micron Sediment Filter - Traps dirt, sand, rust, and suspended particles.
• 2nd Stage: 10" UDF Granular Activated Carbon Filter - Absorbs chlorine, odors, and chemical residues.
• 3rd Stage: 10" CTO Extruded Carbon Block Filter - Further clarifies water and removes volatile organic compounds.
• 4th Stage: King-Pro 50 GPD RO Membrane - Filters down to 0.0001 microns, removing heavy metals and dissolved solids.
• 5th Stage: Post In-Line Carbon Filter - Enhances taste and polishes water before dispensing.
Storage & Components:
• Storage Tank: 3.2 Gallon NSF certified standard pressurized water storage tank.
• Automatic Shut-Off: 4-Way valve system detects water level and automatically shuts down during insufficient feed water or full tank conditions.
• Optional Upgrades: 80G / 100G RO membrane, Mineralizing cartridge, Alkaline filter, and UVC sterilizer.
